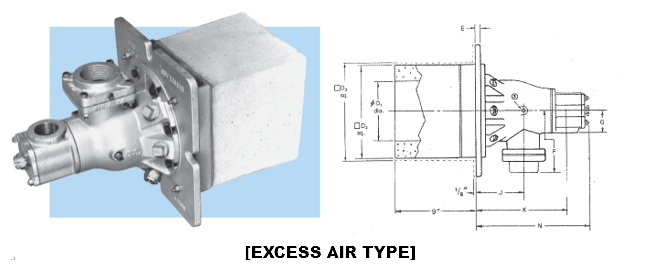

EXCESS AIR TYPE
SUMMARY
FEATURES
STABLE FLAME
HIGH-SPEED COMBUSTION
LOW TEMPERATURE AND HIGH TEMPERATURE (1600 ℃)
CLOSED NOZZLE MIXING TYPE
UNIFORM THERMAL DISTRIBUTION WITH EXCESS AIR
EXCESS GAS RATE (50%)
OPTIONS
CUSTOMIZING AVAILABLE
CONTACT US FOR DETAILS
SPECIFICATIONS
CONTACT US FOR DETAILS

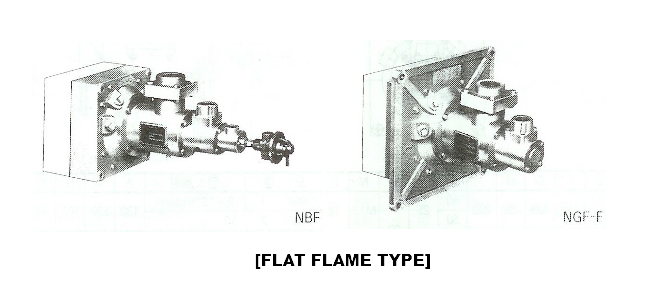

FLAT FLAME TYPE
SUMMARY
IT IS A BURNER THAT HEATS THE MATERIAL AS RADIANT HEAT BY FLAME SPREADING THINLY OVER THE BURNER TILE AND THE WALL OF THE FURNACE TO MAKE TH BURNER TILE SURFACE COINCIDE WITH THE WALL SURFACE OF THE FURNACE. THERE ARE TWO TYPES THAT CAN USE GAS ONLY AND GAS&OIL SIMULTANEOUSLY.
FEATURES
SUITABLE FOR DIRECT FIRE
PREHEATED AIR UP TO 350 ℃ CAN BE USED (PLEASE INFORM US WHEN USING PREHEATED AIR)
NO RISK OF BACKFIRE BY APPLYING A NOZZLE MIXER
GAS AND OIL CAN BE USED AT THE SAME TIME
OPTIONS
NBF TYPE(INSERT TYPE FRONT PLATE) AND NGF TYPE(FLANGE TYPE FRONT PLATE)
CONTACT US FOR DETAILS
SPECIFICATIONS
|
NBF TYPE (INSERT TYPE) |
COMBUSTION CAPACITY(×10^4 Kcal/h) |
NGF (FLANGE TYPE) |
COMBUSTION CAPACITY(×10^4 Kcal/h) |
|
NBF-1 |
5 |
NGF-1 |
5 |
|
NBF-2 |
10 |
NGF-2 |
10 |
|
NBF-3 |
20 |
NGF-3 |
20 |
|
NBF-4 |
30 |
NGF-4 |
30 |
|
NBF-5 |
50 |
NGF-5 |
50 |
CONTACT US FOR DETAILS
BRIGHT LONG FLAME TYPE
SUMMARY
IT HAS WIDE COMBUSTION RANGE AND STABLE COMBUSTION IN EXCESS AIR, SO IT IS WIDELY USED IN INDUSTRIAL FIELD. IT IS ESPECIALLY SUITABLE AS A BURNER OF NON-FERROUS METAL MELTING FURNACE WHICH REQURES LOW SPEED-LONG FLAME WITH BRIGHT LIGHT
WIDE COMBUSTION RANGE
STABLE COMBUSTION EVEN IN EXCESS AIR
LOW SPEED-LONG FLAME WITH BRIGHT LIGHT
OPTIONS
CONTACT US FOR DETAILS
SPECIFICATIONS
|
MODEL |
COMBUSTION CAPACITY(×10^4 Kcal/h) |
GAS PRESSURE (㎜H20) |
AIR PRESSURE (㎜H20) |
FLAME SIZE (Φ×L, ㎜) |
|
BLG-10 |
10 |
110 |
85 |
260×1150 |
|
BLG-20 |
20 |
140 |
130 |
350×1250 |
|
BLG-30 |
30 |
140 |
100 |
450×1400 |
|
BLG-40 |
40 |
140 |
120 |
480×1650 |
|
BLG-60 |
60 |
140 |
180 |
500×1700 |
|
BLG-80 |
80 |
140 |
240 |
620×1800 |
|
BLG-100 |
100 |
160 |
300 |
650×1950 |
CONTACT US FOR DETAILS
