STEEL > CARBURIZING > TEMPERING FURNACE 덧글 0




SUMMARY

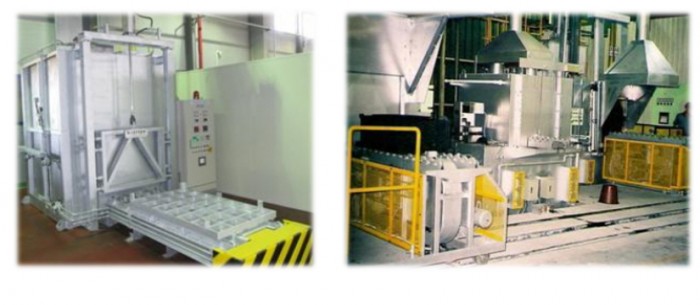

IT IS USED FOR HEAT TREATMENT AND TEMPERING OF GERNERAL STEEL. A CIRCULATION FAN IS INSTALLED TO MINIMIZE THE TEMPERATURE DEVIATION, WHICH IS A KEY MANAGEMENT ITEM IN THE TEMPERING PROCESS, AND A ROLLER STATION IS ATTACHED TO FACILITATE THE ENTRY AND EXIT OF THE PROCESSED MATERIAL. IN PARICULAR, SAVER TYPE IS CHARACTERIZD BY A FAST TEMPERATURE RISE, AND ENERY SAVING, AND SIMPLE MAINTENACE.




FEATURES

  . TEMPERING OF GENERAL STEEL

  . MINIMIZED TERMPERATURE DEVIATION

  . EASY ENTRY AND EXIT OF THE PROCESSED MATERIAL WITH A ROLLER STATION

  . FAST TEMPERATURE RISE AND ENERGY SAVING AND SIMPLE MAINTENANCE (SAVER TYPE)




OPTIONS

  . CONTACT US FOR DETAILS

  . CUSTOMIZING AVAILABLE




SPECIFICATIONS


MODEL NO

INNER SIZE(W×H×L)

POWER

REACHING TIME

TO 550℃ (MIN)

WORKING TEMPERATURE (℃)

DJT - 06

400 × 450 × 400

220V 1Φ 6.0 KW

LESS THAN 60 MIN

650℃

DJT – 12

550 × 450 × 550

220V 1Φ 12.0 KW

LESS THAN 45 MIN

DJT – 18

650 × 500 × 650

220V 3Φ 18.0 KW

LESS THAN 30 MIN

DJT - 26

800 × 600 × 800

220V 3Φ 26.0 KW

LESS THAN 30 MIN

  . CONTACT US FOR MORE DETAILS
