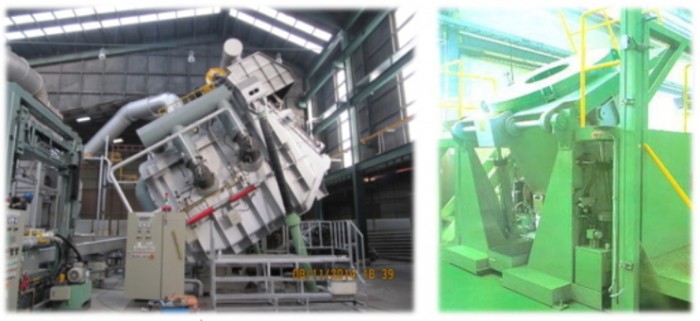

TILTING TYPE

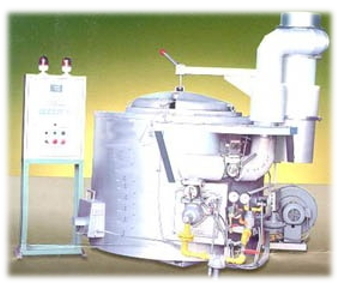

SUMMARY FEATURES . REDUCED ENERGY, REDUCED HEATING INCREASING TIME WITH SPECIAL INSULATION . HIGH WORKABILITY (ELEVATOR INSTALLED FOR TRANSFEING MATERIAL) . IDEAL STRUCTURE (DESIGNED TO MINIMIZE LOAD OF DRIVING PART DURING TILTING PROCESS) OPTIONS . MOVING CART TYPE AVALIABLE . CUSTOMIZING AVAILABLE SPECIFICATIONS MODEL NO CAPA (㎏,AL/CH) FURNACE SIZE(L×H) TEMPERATURE(℃) BURNER CAPACITY(㎉/hr) FUELS DJT-350 350 1400×1500 680~750℃ 200,000 OIL, GAS ELECTRIC DJT-500 500 1560×1500 290,000 DJT-700 700 1650×1600 380,000 BURNER TYPE SUMMARY Heat exchangers have been fitted to utilize waste heat to reduce energy (Energy saving approximately 30 %) FEATURES . ENERGY REDUCTION (UP TO 30%) . IMPROVED SAFETY (AUTO DETECTION OF LEAKAGE) OPTIONS . CUSTOMIZING AVAILABLE SPECIFIATIONS MODEL NO CAPA (㎏,AL/CH) FURNACE SIZE(Φ×H) TEMPERATURE(℃) BURNER(kcal/hr) CRUCIBLE SIZE(Φ×H) ENERGY SAVING RATE(%) DCF-G200RS 200 1360×955 650~750℃ 160,000 616×500 30% DCF-G250RS 250 1360×1085 200,000 616×630 DCF-G350RS 350 1470×1145 250,000 726×690 DCF-G500RS 500 1520×1205 320,000 775×750 SUMMARY FEATURES . CONTINUOUS OPERATION EVEN IN CASE OF OPEN . UNIFORM HEAT DISTRIBUTION INSIDE . CLEAN EQUIPMENT (NO NOISE AND POLLUTION) . EASY MAINTAINANCE FOR HEATING (SIMPLE STRUCTURE, LAMP & ALARM INCLUDED) . HIGH SAFETY (LEAKAGE DETECTOR IS ASSEMBLED IN EMERGENCY DOOR) OPTIONS . CUSTOMIZING AVAILABLE SPECIFICATIONS MODEL NO CAPA (㎏,AL/CH) FURNACE SIZE(Φ×H) TEMPERATURE(℃) POWER(KW) CRUCIBLE SIZE(Φ×H) HEATING ELEMENT SV-E200 200 1330×1030 650~750℃ (MAX 800℃) 48 616×500 STRIP 1400℃ SV-E350 350 1360×1160 54 616×630 SV-E500 500 1440×1220 63 726×690 SV-E650 650 1490×1260 70 775×750

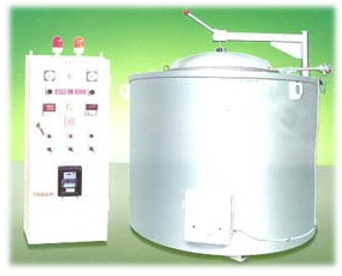

ELECTRIC TYPE
