SUMMARY

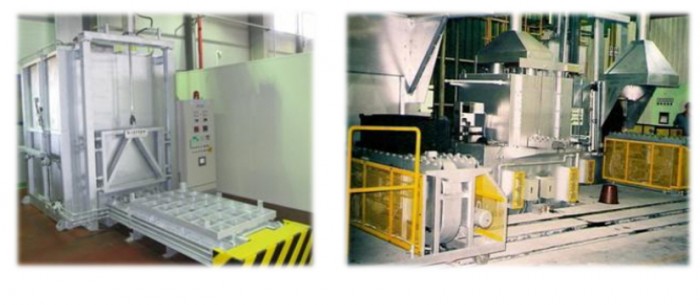

IT IS USED FOR HEAT TREATMENT AND TEMPERING OF GERNERAL STEEL. A CIRCULATION FAN IS INSTALLED TO MINIMIZE THE TEMPERATURE DEVIATION, WHICH IS A KEY MANAGEMENT ITEM IN THE TEMPERING PROCESS, AND A ROLLER STATION IS ATTACHED TO FACILITATE THE ENTRY AND EXIT OF THE PROCESSED MATERIAL. IN PARICULAR, SAVER TYPE IS CHARACTERIZD BY A FAST TEMPERATURE RISE, AND ENERY SAVING, AND SIMPLE MAINTENACE.
FEATURES
. TEMPERING OF GENERAL STEEL
. MINIMIZED TERMPERATURE DEVIATION . EASY ENTRY AND EXIT OF THE PROCESSED MATERIAL
WITH A ROLLER STATION . FAST TEMPERATURE RISE AND ENERGY SAVING AND
SIMPLE MAINTENANCE (SAVER TYPE)
OPTIONS
. CONTACT US FOR DETAILS
. CUSTOMIZING AVAILABLE
SPECIFICATIONS
|
MODEL NO |
INNER SIZE(W×H×L) |
POWER |
REACHING TIME TO 550℃ (MIN) |
WORKING TEMPERATURE (℃) |
|
DJT - 06 |
400 × 450 × 400 |
220V 1Φ 6.0 KW |
LESS THAN 60 MIN |
650℃ |
|
DJT – 12 |
550 × 450 × 550 |
220V 1Φ 12.0 KW |
LESS THAN 45 MIN | |
|
DJT – 18 |
650 × 500 × 650 |
220V 3Φ 18.0 KW |
LESS THAN 30 MIN | |
|
DJT - 26 |
800 × 600 × 800 |
220V 3Φ 26.0 KW |
LESS THAN 30 MIN |
. CONTACT US FOR MORE DETAILS
